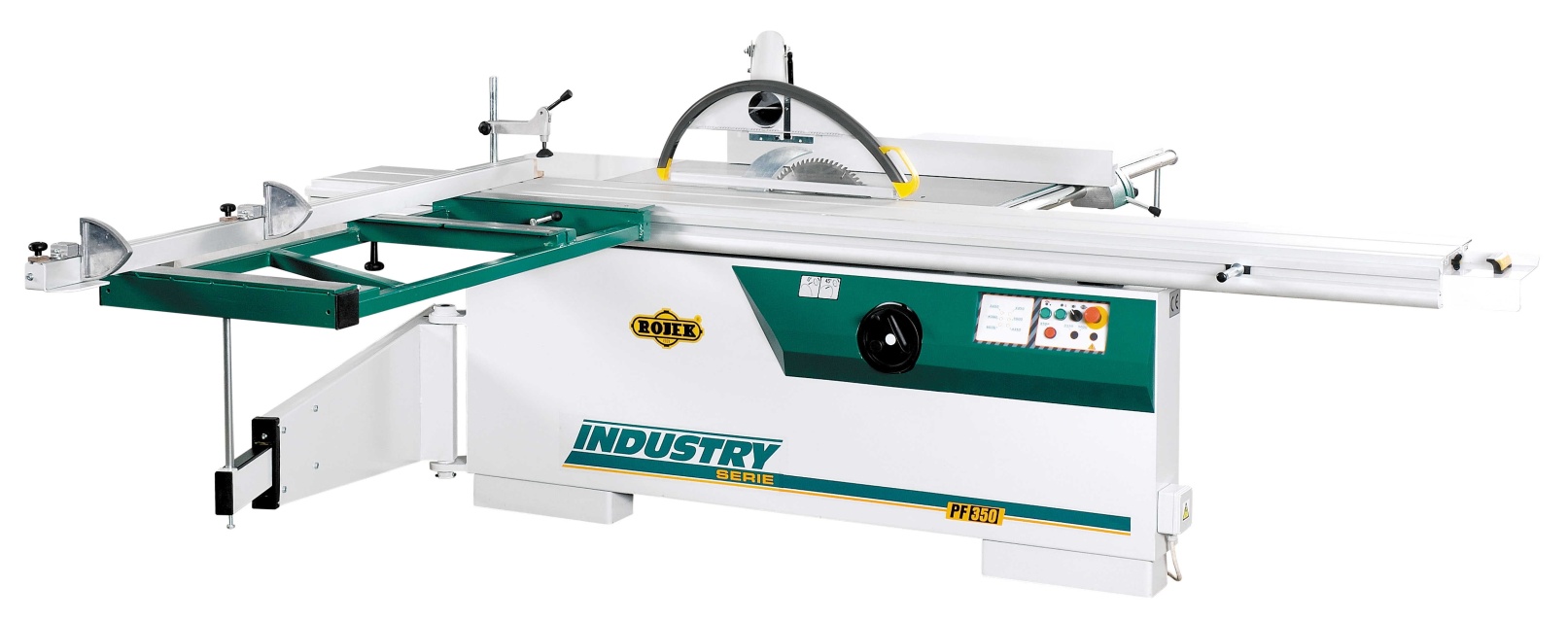

TECHNICAL DATA:
Length of sliding table 2000 x 360 mm
3200 (3800) x 360 mm
Length of cut from saw blade 2000mm
Working table size 1185x500 mm
Width of cut between saw blade and square 1050 mm
Profil G (strenghtened) for rip fence - -
Max. saw blade diam. 350 mm
Height of cut with saw blade diam. 350 mm 115 mm
Height of cut with saw blade diam. 350 mm at 45° 80 mm
Tilting saw blade 0° - 45° degree
Spindle saw diam. 30 mm
Spindle speeds 4450 (OPTION - variable) rpm
Scoring saw blade diam. 120 mm
Scoring saw spindle diam. 20 mm
Scoring spindle speeds 8530 rpm
Three-phase motor 400 V, 50 Hz, S6, 40% main saw spindle 5,3 kW
Three-phase motor 400 V, 50 Hz scoring spindle 0,5 kW
Suction dust hood diam. 100 mm
Net weight 675 kg
Basic machine includes:
Tilting fence with protractor +45°/-45°
Anodized sliding table and profiles
Rip fence with micrometric adjustment and profile G
Ripping stop
Handle of sliding table
Saw blade safety guard
Scoring unit operated by separate motor
Eccentric woodpresser
CE - Standards
Parallelogram CPS CX 400
Service spanners
Instruction handbook
Packing in PE foil
