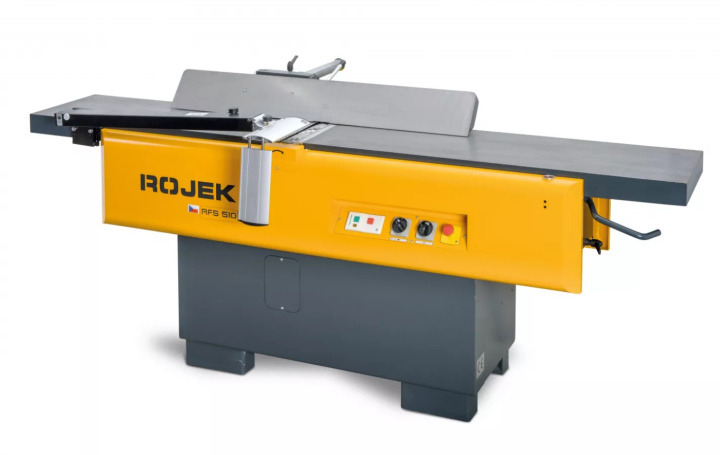

RIKTHYVEL RFS 510
TECHNICAL DATA:
Planing working table sizes RFS 510 2700 x 510 mm
Planing tilting fence 0°- 45° degree

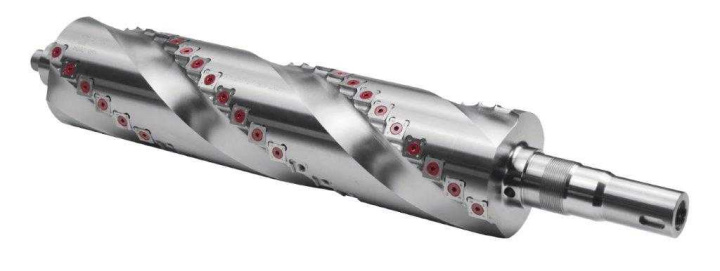

Diam. of four-knife cutterblock 120 mm
Cutterblock speed 5 000 RPM
Three-phase motor 400 V, 50 Hz (S6/40%) 5,3 kW
Suction dust hood diam. 150 mm
Net weight 630 kg
Basic machine includes:
Four-knife cutterblock with 4 knives
Cutterblock protection

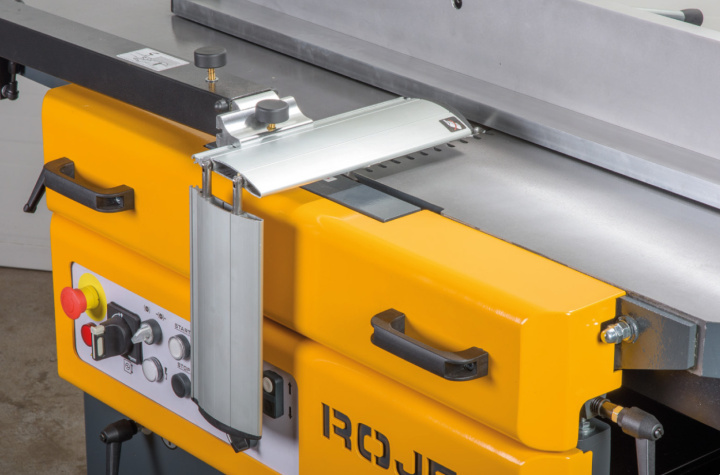

Adjustable surface table fence
Suction hood
Overload protection
CE standards
Service spanners
Instruction handbook
Braking motor
Packing in PE foil
