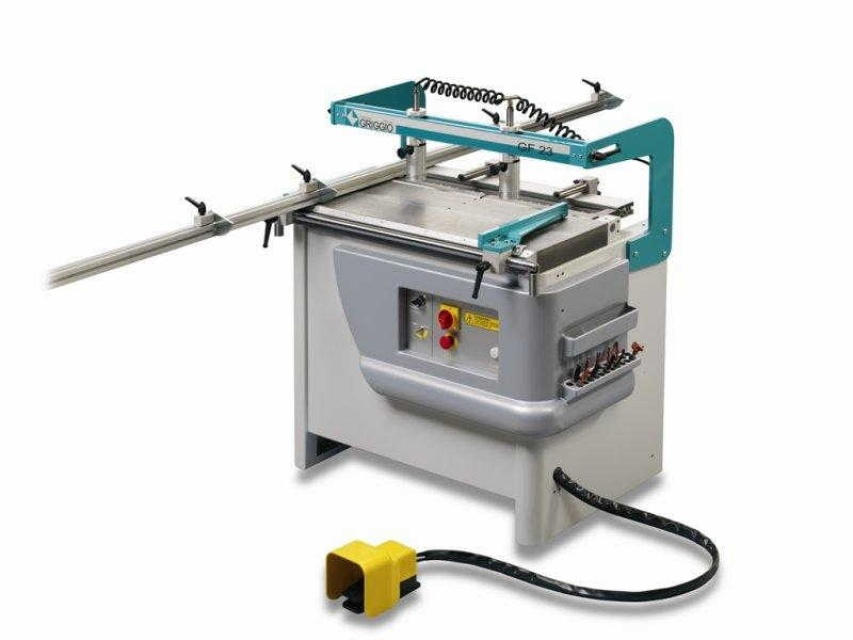

Multiple boring machine GF 23
TECHNICAL DATA:
TECHNICAL DATA:
Table size 970 x 380 mm
Number of spindles 23 pcs.
Distance between outside spindles 704 mm
Centre distance between 2 spindles 32 mm
Max. drilling depth 85 mm
Max. thickness of workpiece 84 mm
Motor power 1,5 kW
Net weight 250 kg
Basic machine includes:
3000 mm Alu fence complete with 4 stops
Side cast iron fences
Two front stops
Pneumatic tilting of spindle 0°-90° with stop at 4 5°
Eccentric stop for quick adjustment of drilling depth
Indication of drilling head position
