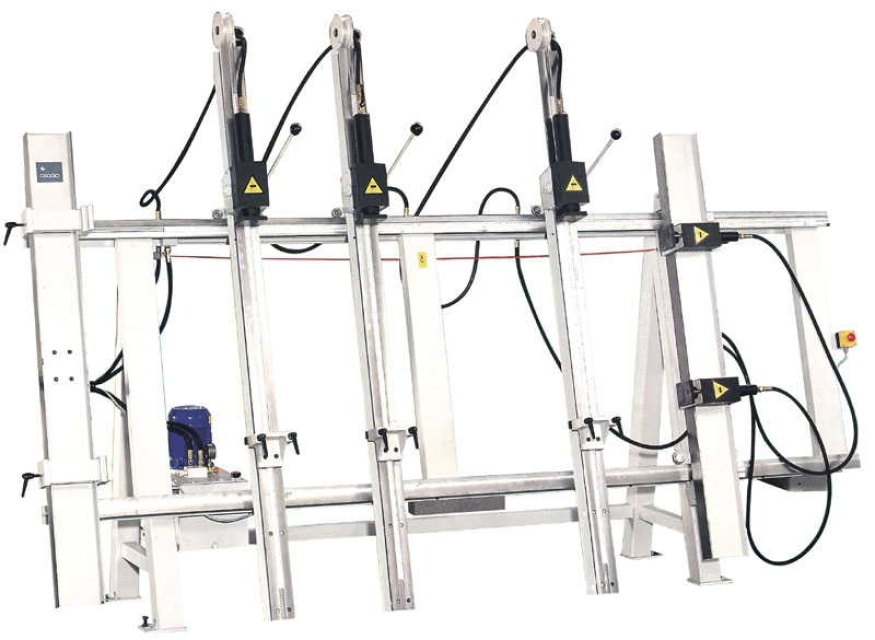

Frame hydraulic press SLRH 2 500/1 800
TECHNICAL DATA:
Working dimension standard 2500 x 1800 mm
Max. working dimensions (On request) 4000 x 2100 mm
Stroke of press cylinders 120 mm
Adjustable working pressure 0,2 - 2,5 t
Width of frame prism 15 - 90 mm
Basic machine includes
Hydraulic electric unit
Three vertical beams
Two horizontal rollers
To be completed with another three vertical beams and one horizontal roller
Instruction handbook
CE-Standards
Packing in PE-foil
